Kawasaki z900rs usb plug and Garmin 17mm ball mount

Tenir un GPS a la moto ajuda bastant a anar pels llocs. La Kawasaki Z900rs  porta un connector de 12V sota el seient, però no porta cal connector USB. Es pot comprar com accessori, substituïnt el connector de 12V, però continua sota el seient. En posarem un a la zona dels comptadors. Trobareu múltiples llocs on aconseguir un conversor de 12V a USB (5V) per a connectar GPS. Tancadets i termosoldats en una capseta per automoció. El problema és connectar-los a 12V sense tallar fils i connectar-ho al lloc adequat. Farem un cable "splitter" per el connector de 12V de sota el seient, de manera que no haurem de tallar res. La única part complicada és trobar els connectors adequats, que son els SUMITOMO HM090

GPS in the motorcycle is a nice to have accessory. Kawa Z900rs has a 12V cigarrette lighter plug under the seat. A USB plug can be purchased from KAwasaki, but you'll lose the 12V plug. And after all, it will continue to be under the seat. Let's install a USB plug in the counter area.  There are lots of DC to DC converters 12V to 5V with USB for automotive applications out there.  The probem is getting 12V without having to mess the bike wiring. Let's make a splitter cable, that can get 12V from the cigarette-lighter plug under the seat. The only complicated thing is getting the propper connector, that is the SUMITOMO HM090

SUMITOMO HM090 Kawasaki z900rs accessoty plug

He trobat algun lloc que deia que el connector adequat era el Sumitomo MT090. Compte que s'assembla molt però no ho és.

I've read somewhere that the plug is a Sumitomo MT090. Beware it is not.

Sumitomo MT090 (left) and HM090 (right)

Ok, fabrico un splitter, un cable curt per connectar el connector de 12V, i un cable llarg per a connectar el convertidor DC DC de 12V a 5V.

OK, there's the splitter I built. One short wire to connnect the original cigarette lighter, and a longer wire to connect the DC-DC converter 12 to 5V

Splitter cable.

Splitter cable, DC converter and original 12V cigarette plug.

Enrutar el cable per la moto te la dificultat habitual. Anar subjectant amb brides ajudarà a que no caigui.

Routing the cable through the bike is tricky, but can be done easily.. Tie it with ties to prevent cable from getting loose.

USB connector near the clocks.

My beloved Garmin in place.

The mount is a 17mm stainless steel ball.

cosa

Silencing HP Proliant ML110G7 for good. 2 ways



Silenciant els ventiladors del HP Proliant ML110G7 d'una vegada. Dues maneres. On és el problema: Els servidors Proliant tenen una vintena de sensors de temperatura "Sea of sensors" que envien informació al controlador del ILO (Integrated Lights Out), que permet l'administració de flotes de servidors de manera remota. Interessant per datacenters. Aquest Controlador ILO porta unes corbes de PWM dels ventiladors que els fan treballar de manera molt sorollosa.  A més a més, HP és mal amic dels hobbysts, i si instal.les memòries o targetes que no son de HP, els ventiladors també es posen a voltar a tope. Provant de desconnectar els ventiladors, mala idea Si es prova de desconnectar els ventiladors, el servidor no es vol engegar, mostrant l'error "Insufficient insufficient cooling solution" durant la etapa de POST, i aturant-se. Mal rotllo.

Silencing HP Proliant ML110G7 for good. 2 ways. Where's the problem: Proliant servers have over 20 temperature sensors "Sea of Sensors" that feed ILO (Integrated Lights Out) Controller. This small engine allows for remote server management and supervision. This is interesting for datacenters. But this ILO also has the PWM curves that define fan behavior for different temperatures. These curves are the responsible for Proliant Servers being noisy as a hooligan. Also, HP is not very good friend of hobbists: installing non-HP ECC memory, or non-approved cards, will make your fan spin at top speed. Disconnect fan connectors. A bad idea. If you try to start the server with the fans disconnected, or connected to a spare fan controller, the server will complain with an error "insufficient cooling solution" during POST, continued by a shutdown.

SOLUCIÓ 1: Fer un invent per saltar l'error de "insufficient cooling solution", i canviar ventiladors per ventiladors estàndard de Gaming i un controlador. Examinem el connector dels ventiladors

SOLUTION 1: Workaround the insufficient cooling solution error, and replace fans with gaming fans and a fan controller Let's find info on fan connector pinout



Non original connector HP fan. Colors are compatible

Definició dels pins: 1:  Groc: +12V 2: Key, no connectat 3: Blau: PWM senyal control de velocitat. 4: Verd: Sensor de voltes 5: Blanc o negre: Detector presencia ventilador 6: GND Com funciona: Quan el 5 i el 6 es connecten junts, es detecta que hi ha un ventilador connectat. TRUC: Perquè no es queixi de falta de senyal al sensor de voltes, cal connectar-lo també a GND i ja no es queixa. Per tant, pontejar els pins 4 5 i 6 funciona!

Pin definition: 1: Yellow: +12V 2: KEY (not connected 3: Blue: PWM speed signal 4: Green: Tachometer (speed sensor) 5: Black or white: Fan presence detector 6: GND How does it work: When pins 5 and 6 are connected together, system understands that there's a fan connected, TRICK: To prevent system complaining about lack of tachometer signal, simply connect this pin to GND. Weird. But works. So shorting pins 4, 5 and 6 works!



Shorting pins 4, 5 and 6 will allow starting your Proliant without fans, and not receive the insufficient cooling solution error.

O sigui que fent aquestes soldadures a la placa, permetrà que engegis el Proliant ML110G7 (i també el ML310eG8) sense ventiladors.  Ara ja pots comprar una pila de ventiladors estàndard nous, i un controlador de ventiladors de Gaming, i refredar com vulguis el servidor, sense les corbes del ILO.

So, making these shorts in your mainboard, you'll be able to start your Proliant ML110G7 (and also the ML310eG8) without fans attached.  Now you can get brand new standard fans, and a gaming fan controller, and install a new cooling solution, completely bypassing the ILO curves.



SOLUCIÓ 2: Conservar els ventiladors originals, i només manipular la senyal del PWM, per a que vingui donada per un petit controlador "Aliexpress", interposat entre la placa i el ventilador, evitant que ILO tingui res a veure. No cal manipular la placa base. Curiosament, ILO dóna ordres de girar als ventiladors, però no supervisa les RPM del sensor de gir (tacòmetre)

SOLUTION 2: Keep your original Proliant fans, and fake the PWM signal, through an "Aliexpress Zhiyu fan controller", interposed between the mainboard and the fan, sot that the signal is controlled by this, preventing ILO mess things. No need to short anything in the mainboard. Curious enough, that ILO pretends to drive FAN speed, but does not control the tachometer.



zhiyu interposer to control fans. Gets 12V and GND from mainboard, and generates PWM according to sensor. Tacho signal passes through.

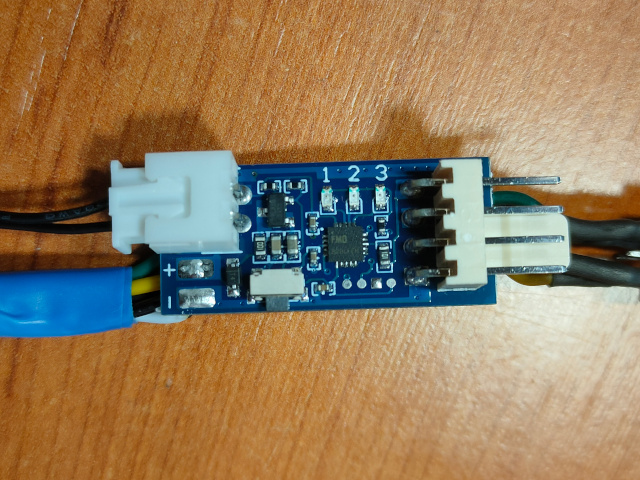

Zhiyu programmable fan controller with sensor. Connects to 12V and feeds a 4 pin fan.

Per evitar tallar cables, comprarem connectors JST PHD2.0 de 2x3 pins i construirem un mòdul per intercalar entre el connector de la placa i el connector del ventilador.

To prevent cutting wires, I puchased JST PHD 2.0 2x3pin connectors, with the purpose to build a module interposed between the fan connector and the PCB connector.



Original JST PHD 2.0 3x2 pin HP fan connector (left) Aliexpress JST PHD 2.0 3x2 connector (Right)

nterposer protected using thermoretractile tubeI

Pic shows 2 fan controllers interposed in place. Sensor is placed inside heatsink and in front of back fan.

Programació del controlador de ventiladors Zhiyu: És molt senzill: és un autòmata de 4 estats: Estat 1: Funcionament Estat 2: Programació de la velocitat base (1-18) Estat 3: Programació de la temperatura on començar a accelerar el ventilador (30º-70º) Estat 4: Programació de la temperatura on velocitat=100% (+5ºC +50ºC) L'interface d'usuari és tant sols 1 polsador, per tant, cal fer una combinació de pulsacions llargues, clic i doble clic, per anar seleccionant.

Programming the Zhiyu fan controller. It's very easy: it is done in 4 stages: stage 1: Working state stage 2: Base fan speed setting (1-18) stage 3: Set temperature to start accelerating the fan (30º-70º) stage 4: Set temperature where speed=100% (+5ºC +50ºC) User interface is tricky because it is a single button. Options need to be chosen through long click, click and couble click.



Zhiyu fan controller programming. 4 states.

Zhiyu controller fan curve

Zhiyu Fan controller Manual (Full)

Configuració que he posat: Condicions: - Tarda de final d'estiu a 29º de temperature - utilitzant in Xeon E3-1240  - CPU-Z stress CPU test CPU: - Base speed: 7 - Min Temp: 40 - Max Temp: +15 Ventilador darrere: - Base speed: 5 - Min Temp: 40 - Max Temp: +15 Ventilador Frontal - Base speed: 5 - Min Temp: 40 - Max Temp: +10 Amb la caixa tancada, la temperatura no passa de 65º

Settings that work for me: Conditions: - Summer hot afternoon at 29ºC room temp. - Using a Xeon E3-1240 - CPU-Z stress CPU test CPU FAN: - Base speed: 7 - Min Temp: 40 - Max Temp: +15 REAR FAN - Base speed: 5 - Min Temp: 40 - Max Temp: +15 FRONT FAN - Base speed: 5 - Min Temp: 40 - Max Temp: +10 Witht he enclosure closed, CPU temp is always under 65ºC
